### 背景 ###
办公区或家里的上网线路不是专线（专线好贵啊），没有固定的公网IP，而服务器的某些网络服务不便对公网开放，仅想征对办公区或家里的线路开放。

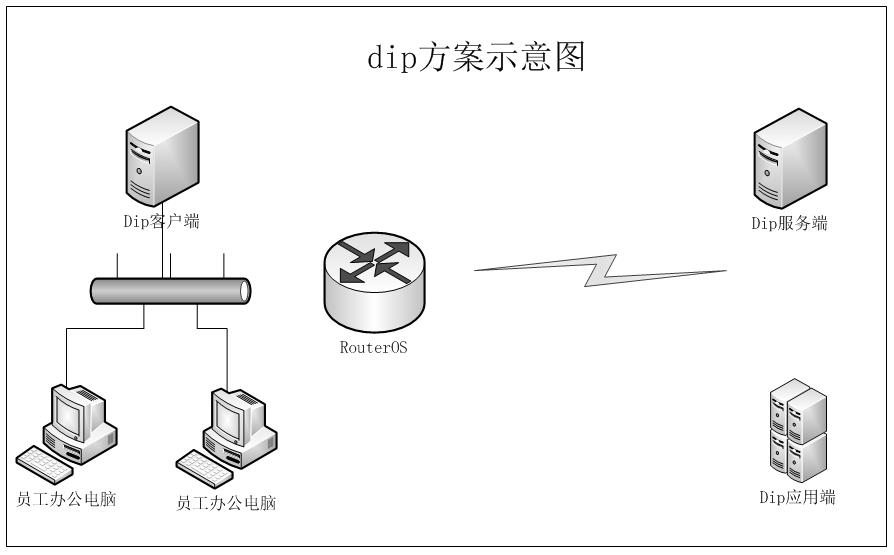

### 思路简介 ###
办公区每条ADSL线路下（实际上现在都是光纤接入，只是服务近似于以往的ADSL）准备一台不需要关机的服务器，通过计划任务配置curl客户端基于验证去不断请求一个URL，公网IP就送到了web服务的日志中去了，
公网环境下准备一台linux服务器，搭建web服务（推荐nginx），通过一个脚本定期去web服务的日志中获得可信任的最新的办公区IP，提供基于验证的http服务，公网上可下载到该IP，
应用动态IP到防火墙的服务器，始终通过定制的脚本配置防火墙所有规则（应该养成通过脚本配置防火墙的习惯，如果再通过手动修改防火墙将可能导致配置丢失或冲突），并且跑一个计划任务来获取最新的IP，有变更时，便应用到本地防火墙指定的策略中。
该方案我们简称为dip方案吧，于是下文便有名称：dip客户端，dip服务端，dip应用端。
### 实践效果 ###
实践了六年以上，未依赖第三方（花生壳等）DDNS服务，可靠性、可控性非常好。
### 实施细节参考 ###
dip客户端配置
办公区的linux服务器，建自动任务于/etc/crontab
* * * * * root curl -u dip:pass –retry 3 –retry-delay 1 –connect-timeout 7 –max-time 5 http://dip.zhaoyanan.cn:83/uploadip_office01.txt > /dev/null 2>&1
运行该任务的办公区服务器，和员工PC机访问的目标服务器，应该在同一条上网线路下，假如有多条线路，那么建议使用多台服务器或者在核心路由（比如RouterOS）实现，
使用多台服务器时，为方便脚本统一实现最终目的，访问目标URL可以按下面的规律配置：
http://dip.zhaoyanan.cn:83/uploadip_office01.txt
http://dip.zhaoyanan.cn:83/uploadip_office02.txt
http://dip.zhaoyanan.cn:83/uploadip_office03.txt
其中RouterOS可通过自带脚本功能，使用fetch命令访问具有不同的目标端口的URL来区分ADSL线路，可自行研究。
dip服务端配置
nginx配置示例
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 |
server { listen 83; server_name dip.zhaoyanan.cn; set $host_dir /opt/web/dip; charset gb2312; access_log logs/dip_access.log main; location / { root $host_dir; index index.html index.htm; } location ~ ^/uploadip_(.*).txt { #autoindex on; #autoindex_exact_size off; auth_basic “Please enter your username and password”; auth_basic_user_file /opt/nginx/conf/dip–htpasswd; root $host_dir; index index.html index.htm index.php; } location ~ /\.ht { deny all; } } |
生成/opt/nginx/conf/dip-htpasswd的方法：
python /root/sh/htpasswd.py -c -b /opt/nginx/conf/dip-htpasswd user pass
htpasswd.py脚本内容
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 |
#!/usr/bin/python “””Replacement for htpasswd””” # Original author: Eli Carter import os import sys import random from optparse import OptionParser # We need a crypt module, but Windows doesn’t have one by default. Try to find # one, and tell the user if we can’t. try: import crypt except ImportError: try: import fcrypt as crypt except ImportError: sys.stderr.write(“Cannot find a crypt module. “ “Possibly http://carey.geek.nz/code/python-fcrypt/\n”) sys.exit(1) def salt(): “””Returns a string of 2 randome letters””” letters = ‘abcdefghijklmnopqrstuvwxyz’ \ ‘ABCDEFGHIJKLMNOPQRSTUVWXYZ’ \ ‘0123456789/.’ return random.choice(letters) + random.choice(letters) class HtpasswdFile: “””A class for manipulating htpasswd files.””” def __init__(self, filename, create=False): self.entries = [] self.filename = filename if not create: if os.path.exists(self.filename): self.load() else: raise Exception(“%s does not exist” % self.filename) def load(self): “””Read the htpasswd file into memory.””” lines = open(self.filename, ‘r’).readlines() self.entries = [] for line in lines: username, pwhash = line.split(‘:’) entry = [username, pwhash.rstrip()] self.entries.append(entry) def save(self): “””Write the htpasswd file to disk””” open(self.filename, ‘w’).writelines([“%s:%s\n” % (entry[0], entry[1]) for entry in self.entries]) def update(self, username, password): “””Replace the entry for the given user, or add it if new.””” pwhash = crypt.crypt(password, salt()) matching_entries = [entry for entry in self.entries if entry[0] == username] if matching_entries: matching_entries[0][1] = pwhash else: self.entries.append([username, pwhash]) def delete(self, username): “””Remove the entry for the given user.””” self.entries = [entry for entry in self.entries if entry[0] != username] def main(): “””%prog [-c] -b filename username password Create or update an htpasswd file””” # For now, we only care about the use cases that affect tests/functional.py parser = OptionParser(usage=main.__doc__) parser.add_option(‘-b’, action=‘store_true’, dest=‘batch’, default=False, help=‘Batch mode; password is passed on the command line IN THE CLEAR.’ ) parser.add_option(‘-c’, action=‘store_true’, dest=‘create’, default=False, help=‘Create a new htpasswd file, overwriting any existing file.’) parser.add_option(‘-D’, action=‘store_true’, dest=‘delete_user’, default=False, help=‘Remove the given user from the password file.’) options, args = parser.parse_args() def syntax_error(msg): “””Utility function for displaying fatal error messages with usage help. “”” sys.stderr.write(“Syntax error: “ + msg) sys.stderr.write(parser.get_usage()) sys.exit(1) if not options.batch: syntax_error(“Only batch mode is supported\n”) # Non-option arguments if len(args) < 2: syntax_error(“Insufficient number of arguments.\n”) filename, username = args[:2] if options.delete_user: if len(args) != 2: syntax_error(“Incorrect number of arguments.\n”) password = None else: if len(args) != 3: syntax_error(“Incorrect number of arguments.\n”) password = args[2] passwdfile = HtpasswdFile(filename, create=options.create) if options.delete_user: passwdfile.delete(username) else: passwdfile.update(username, password) passwdfile.save() if __name__ == ‘__main__’: main() |
建自动任务于/etc/crontab
* * * * * root /root/sh/dip.sh do >> /root/sh/dip.log 2>&1; sleep 30; /root/sh/dip.sh do >> /root/sh/dip.log 2>&1
/root/sh/dip.sh脚本运行前，先创建文件：
echo 1.1.1.1 > /opt/web/dip/downloadip_office01.txt
echo uploadip_office01 > /opt/web/dip/uploadip_office01.txt
echo 1.1.1.1 > /opt/web/dip/downloadip_office02.txt
echo uploadip_office02 > /opt/web/dip/uploadip_office02.txt
downloadip文件首先不能为空，所以先随便输入一个IP到文件中。
/root/sh/dip.sh脚本内容：
（脚本发邮件功能需要mutt支持，如果不需要发邮件通知，可以去掉该功能）
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 |
#!/bin/bash ################################### # function get the dynamic IP to write the file # # 参考创建或使用示例: touch /root/sh/dip.sh; chmod 700 /root/sh/dip.sh # Initialization： # echo 1.1.1.1 > /opt/web/dip/downloadip_office01.txt # echo uploadip_office01 > /opt/web/dip/uploadip_office01.txt # echo 1.1.1.1 > /opt/web/dip/downloadip_office02.txt # echo uploadip_office02 > /opt/web/dip/uploadip_office02.txt # task： # */3 * * * * root /root/sh/dip.sh > /dev/null 2>&1 # Change History: # date author note # 2013/11/18 mail@zhaoyanan.cn create # 2017/11/28 mail@zhaoyanan.cn 调整格式，采用新的标准发件方式 # 2018/06/12 mail@zhaoyanan.cn 更换ip合法性判断方法，解决无法识别末尾为0的IP的bug ################################### ############# ENV ################# # 脚本名称，临时文件或邮件中可能用到，避免同类脚本的变量的冲突，下面直接取脚本名 export project_name=`echo ${0##*/} | cut -d’.’ -f 1` # 工作目录，可能会产生临时文件 export work_dir=/root/sh # 临时文件目录 export tmp_dir=/tmp # 动态IP简称 export location_name_group=“office01” # eg: “office01 office02” #export location_name_group=”office01 office02″ # eg: “office01 office02” export location_name_group_mail=“office01” # eg: “office01 office02” 这组不会应用到异地iptables，会直接在本脚本进行发件通知 #export location_name_group_mail=”office01 office02″ # eg: “office01 office02” 这组不会应用到异地iptables，会直接在本脚本进行发件通知 # nginx请求日志 export nginx_dip_log=/opt/nginx/logs/dip_access.log # 收发邮件地址 mailfromadd=“mail@zhaoyanan.cn.test” mailtoadd=“mail@zhaoyanan.cn.test” # 时间和环境变量，一般无需修改 export datetime=$(date +%Y%m%d–%H%M) export HOME=/root # 使用mutt，脚本又在/etc/crontab中运行，那么HOME变量是会受干扰的，所以必须指定 export LANG=C export LC_ALL=C export PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin export parameter1=$1 ############# PROC ################# # 记录开始时间 start_time=$(date +%s) ### 函数 ### # 帮助信息 function help_msg() { echo –e “\033[41merror!!! 小心点，不要慌，现在出错了，请仔细查看下面的帮助信息：\033[0m” cat <<EOF ADSL动态IP获取 HELP: \$1: parameters eg: do exec eg: sh $0 do EOF echo –e “\033[41merror!!! 小心点，不要慌，现在出错了，请仔细查看上面的帮助信息：\033[0m” } function mailto() { # mail echo “$msg” | /opt/mutt/bin/mutt \ –e ‘set content_type=”text/html”‘ \ –s “[dip] $projectname $sub” \ –e ‘my_hdr from:’“$mailfromadd” \ –c “$mailccadd” \ “$mailtoadd” — } function check_ip() { # Example: # check_ip 192.168.1.1 # check_ip 256.1.1.1 IP=$1 if [[ $IP =~ ^[0–9]{1,3}\.[0–9]{1,3}\.[0–9]{1,3}\.[0–9]{1,3}$ ]]; then FIELD1=$(echo $IP|cut –d. –f1) FIELD2=$(echo $IP|cut –d. –f2) FIELD3=$(echo $IP|cut –d. –f3) FIELD4=$(echo $IP|cut –d. –f4) if [ $FIELD1 –le 255 –a $FIELD2 –le 255 –a $FIELD3 –le 255 –a $FIELD4 –le 255 ]; then # echo “IP $IP available.” check_ip_result=0 else echo “IP $IP not available!” check_ip_result=1 fi else echo “IP format error!” check_ip_result=1 fi } cd $work_dir if [ “$parameter1” == “” ] || [ “$parameter1” == “help” ]; then help_msg exit echo “`date +”%Y–%m–%d %H:%M:%S“` error, exit.” elif [ “$parameter1” == “do” ]; then true fi # 下面这个方法判断末尾为0的IP不行，所以放弃 # regex=”\b(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[1-9])\.(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[0-9])\.(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[0-9])\.(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[1-9])\b” sub=“Nothing, please login server view” msg=“Nothing, please login server view” echo –e “<html><head><meta http–equiv=\“Content–Type\“ content=\“text/html; charset=utf–8\“ /> <title>${projectname}_rsync_report_${current_time}</title></head><body>“ > Routine_reports_${project_name}.html echo “出口线路的公网IP有变化的如下列：<br>” >> Routine_reports_${project_name}.html echo “name oldip newip <br><hr>” >> Routine_reports_${project_name}.html i=0 for location_name in $location_name_group do dynamic_oldip=`cat /opt/web/dip/downloadip_“$location_name”.txt` #dynamic_newip=`grep “uploadip_$location_name\.txt” $nginx_dip_log | egrep “curl|Mikrotik” | grep -v 401 | grep 200 | awk ‘{ print $1; }’ | tail -1` dynamic_newip=`grep “uploadip_$location_name\.txt” $nginx_dip_log | grep –v 401 | egrep “200|304” | awk ‘{ print $1; }’ | tail –1` check_ip $dynamic_oldip if [ “$check_ip_result” == “1” ];then dynamic_oldip=null fi check_ip $dynamic_newip if [ “$check_ip_result” == “1” ];then dynamic_newip=error fi if [ “$check_ip_result” == “0” ] && [ “$dynamic_oldip” != “$dynamic_newip” ] && [ “$dynamic_newip” != “error” ];then echo $dynamic_newip > /opt/web/dip/downloadip_“$location_name”.txt fi for location_name_mail in $location_name_group_mail do if [ “$location_name” == “$location_name_mail” ] && [ “$dynamic_oldip” != “$dynamic_newip” ]; then i=1 echo “$location_name $dynamic_oldip $dynamic_newip <br>” >> Routine_reports_${project_name}.html fi done done echo –e “</body></html>” >> Routine_reports_${project_name}.html # mail if [ “$i” –eq 1 ]; then sub=“notice: dynamic IP changed” msg=“$(cat Routine_reports_${project_name}.html)” mailto echo “`date +”%Y–%m–%d %H:%M:%S“` “$sub“, mail notification has been sent.” fi echo “” stop_time=$(date +%s) echo “本次脚本运行了$((${stop_time}-${start_time}))秒。” |
dip应用服务器linux配置
linux防火墙iptables主脚本
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 |
#!/bin/bash ################################### # author mail@zhaoyanan.cn # date 2012/08/31 # function iptables config # # create: touch /root/sh/iptables.sh; chmod 700 /root/sh/iptables.sh # # Change History: # date author note # 2012/09/07 mail@zhaoyanan.cn # 2012/09/10 mail@zhaoyanan.cn # 2013/11/19 mail@zhaoyanan.cn for dynamic IP ################################### ######### ENV #################### export LANG=C export LC_ALL=C export PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin ###### filter table ################ ###### INPUT chains ###### iptables –P INPUT ACCEPT iptables –P OUTPUT ACCEPT iptables –P FORWARD ACCEPT iptables –F iptables –X iptables –A INPUT –m state —state RELATED,ESTABLISHED –j ACCEPT iptables –A INPUT –i lo –j ACCEPT ### ICMP ### iptables –A INPUT –p icmp –m icmp —icmp–type any –m limit —limit 20/s –j ACCEPT #iptables -A INPUT -p icmp -j ACCEPT ### web ### iptables –A INPUT –p tcp –m state —state NEW –m multiport —dport 80,443 —tcp–flags SYN,RST,ACK SYN –j ACCEPT ### Trust Network ################# for adminip in 1.1.1.1 2.2.2.2 do iptables –A INPUT –s $adminip –j ACCEPT done ### 动态IP策略开始 ### dynamic_newip=`curl –s –S http://dip.zhaoyanan.cn:83/downloadip_office01.txt` if [ “$dynamic_newip” == “” ];then echo “$dynamic_name IP did not get.” else iptables –A INPUT –s $dynamic_newip –p tcp –m state —state NEW –m multiport —dport 1521 —tcp–flags SYN,RST,ACK SYN –j ACCEPT –m comment —comment “input-dynamicoffice01-rule” fi dynamic_newip=`curl –s –S http://dip.zhaoyanan.cn:83/downloadip_office02.txt` if [ “$dynamic_newip” == “” ];then echo “$dynamic_name IP did not get.” else iptables –A INPUT –s $dynamic_newip –p tcp –m state —state NEW –m multiport —dport 1521 —tcp–flags SYN,RST,ACK SYN –j ACCEPT –m comment —comment “input-dynamicoffice02-rule” fi ### 动态IP策略结束 ### # temp ### global ### iptables –A INPUT –j REJECT —reject–with icmp–host–prohibited ###### save #################### iptables–save –c > /etc/sysconfig/iptables iptables–save –c > /etc/sysconfig/iptables_$(date +%Y%m%d–%H%M) |
linux防火墙iptables动态策略脚本
/root/sh/iptables_dynamicoffice01.sh示例：
一条线路一个脚本，/root/sh/iptables_dynamicoffice02.sh内容一样，只需要改location_name的值为office02
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 |
#!/bin/bash ################################################################### # author mail@zhaoyanan.cn # date 2012/09/07 # update 2012/09/21 mail@zhaoyanan.cn Bug fixes # update 2012/09/24 mail@zhaoyanan.cn Improve function # update 2012/10/08 mail@zhaoyanan.cn Improve function # update 2012/11/09 mail@zhaoyanan.cn Improve function # update 2013/01/05 mail@zhaoyanan.cn To modify mail address variable # update 2013/07/19 mail@zhaoyanan.cn for the xen # update 2013/08/02 mail@zhaoyanan.cn fix bug # update 2013/11/19 mail@zhaoyanan.cn Increase program: Through the shell and HTTP protocol to get the office dynamic IP # # function soonyo ddns iptables config for xen # # Automatically and periodically run: # Create a script, Append the following to /etc/crontab file # touch /root/sh/iptables_dynamicoffice01.sh;chmod u+x /root/sh/iptables_dynamicoffice01.sh # * * * * * root /root/sh/iptables_dynamicoffice01.sh >> /root/sh/iptables_dynamicoffice01.log 2>&1 ################################################################### ####################### ENV ####################################### # 脚本名称，临时文件或邮件中可能用到，避免同类脚本的变量的冲突，下面直接取脚本名 export project=`echo ${0##*/} | cut -d’.’ -f 1` location_name=office01 dynamic_name=dynamic${location_name} mailfromadd=“mail@zhaoyanan.cn.test” #mailtoadd=’mail@zhaoyanan.cn.test’ mailccadd= export LANG=C export LC_ALL=C export PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin workdir=/root/sh ####################### do ############################ regex=“\b(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[1-9])\.(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[0-9])\.(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[0-9])\.(25[0-5]|2[0-4][0-9]|1[0-9][0-9]|[1-9][0-9]|[1-9])\b” dynamic_newip=`curl –s –S http://dip.zhaoyanan.cn:83/downloadip_${location_name}.txt` #dynamic_newip=123.145.32.111 dynamic_oldip=`iptables –nL | grep “$dynamic_name”–rule | awk ‘{print $4; }’ | head –1 | egrep $regex` dynamic_oldip_num=`iptables –nL | grep “$dynamic_name”–rule | awk ‘{print $4; }’ | uniq –c | wc –l` input_commend_repnum=`iptables –nL —line | grep input–“$dynamic_name”–rule | awk ‘{print $(NF-1); }’ | uniq –c | sort –n | awk ‘{print $1; }’ | tail –1` #forward_commend_repnum=`iptables -nL –line | grep “forward-“$dynamic_name”-rule” | awk ‘{print $(NF-1); }’ | uniq -c | sort -n | awk ‘{print $1; }’ | tail -1` test –f /tmp/ddns_m_value_“$project” || echo “0” > /tmp/ddns_m_value_“$project” test –f /tmp/ddns_n_value_“$project” || echo “0” > /tmp/ddns_n_value_“$project” m=`cat /tmp/ddns_m_value_“$project”` n=`cat /tmp/ddns_n_value_“$project”` i=0 function mailto() { /usr/sbin/sendmail –t <<EOF From: $mailfromadd To: $mailtoadd Cc: $mailccadd Subject: [dip] $project $sub $msg EOF } sub=“Nothing, please login server view” msg=“Nothing, please login server view” # check and mail # if [ “$dynamic_oldip_num” == “” ];then sub=“fatal: iptables does not exist in a dynamic IP” msg=“Such as the title.” echo “`date` $sub” m=$(($m+1)); echo $m > /tmp/ddns_m_value_“$project” elif [ “$dynamic_oldip_num” –ge 2 ];then sub=“warn: iptables there are multiple different dynamic IP” msg=“Such as the title.” echo “`date` $sub” m=$(($m+1)); echo $m > /tmp/ddns_m_value_“$project” fi if [ “$input_commend_repnum” == “” ];then sub=“warn: iptables comments incomplete” msg=“Such as the title.” echo “`date` $sub” m=$(($m+1)); echo $m > /tmp/ddns_m_value_“$project” elif [ “$input_commend_repnum” –ge 2 ];then sub=“warn: iptables there are multiple different dynamic IP or same comment” msg=“Such as the title.” echo “`date` $sub” m=$(($m+1)); echo $m > /tmp/ddns_m_value_“$project” fi if [ “$dynamic_newip” == “” ];then sleep 10 #dynamic_newip=`nslookup $ddomain ns1.gnway.com | grep “Address:” | grep -v “#” | cut -d’ ‘ -f 2 | egrep $regex` dynamic_newip=`curl –s –S http://dip.zhaoyanan.cn:83/downloadip_${location_name}.txt` fi if [ “$dynamic_newip” == “” ];then sub=“warn: dynamic IP did not get, iptables not change” msg=“Such as the title, results:$dynamic_newip.” echo “`date` “$sub“, results:$dynamic_newip, mail notification has been sent.” m=$(($m+1)); echo $m > /tmp/ddns_m_value_“$project” else m=0; echo $m > /tmp/ddns_m_value_“$project” i=1 fi if [ “$i” –eq 0 ] && [ “$n” –eq 0 ]; then sub=“warn: dynamic IP problem, iptables not change” msg=“Such as the title, results:$dynamic_newip, see the log.” mailto echo “`date` “$sub“, results:$dynamic_newip, mail notification has been sent.” n=1; echo $n > /tmp/ddns_n_value_“$project” elif [ “$i” –eq 0 ] && [ “$m” –eq 120 ]; then sub=“warn: dynamic IP problem(too many times), iptables not change” msg=“Such as the title.” mailto echo “`date` “$sub“, mail notification has been sent again.” m=0; echo $m > /tmp/ddns_m_value_“$project” elif [ “$m” –eq 0 ] && [ “$n” –eq 1 ]; then sub=“notice: dynamic IP successfully got” msg=“Such as the title.” mailto echo “`date` “$sub“,results:$dynamic_newip, mail notification has been sent.” n=0; echo $n > /tmp/ddns_n_value_“$project” fi # replace rule # if [ “$dynamic_oldip” != “$dynamic_newip” ] && [ “$i” –eq 1 ]; then iptables –nL —line | grep input–“$dynamic_name”–rule | awk ‘{print $1″:”$(NF-1); }’ > /tmp/input–“$dynamic_name”–list.txt sed –n /env_start/,/env_over/{p} “$workdir”/iptables.sh > “$workdir”/iptables_“$dynamic_name”_tempcmd.sh echo “dynamic_newip=$dynamic_newip” >> “$workdir”/iptables_“$dynamic_name”_tempcmd.sh for k in `cat /tmp/input–“$dynamic_name”–list.txt` do input_dynamic_rule_line=`echo $k | awk –F ‘:’ ‘{print $1; }’` input_dynamic_rule_comment=`echo $k | awk –F ‘:’ ‘{print $2; }’` grep “$input_dynamic_rule_comment” “$workdir”/iptables.sh | sed ‘s/-A INPUT -s/-R INPUT ‘“$input_dynamic_rule_line”‘ -s/g’ | sed ‘s/$dynamic_newip./$dynamic_newip /g’ >> “$workdir”/iptables_“$dynamic_name”_tempcmd.sh done /bin/bash “$workdir”/iptables_“$dynamic_name”_tempcmd.sh sub=“notice: dynamic IP changes to $dynamic_newip” msg=“Such as the title.” mailto echo “`date` “$sub“, mail notification has been sent.” fi |
配置计划任务于/etc/crontab：
* * * * * root /root/sh/iptables_dynamicoffice01.sh >> /root/sh/iptables_dynamicoffice01.log 2>&1
* * * * * root /root/sh/iptables_dynamicoffice02.sh >> /root/sh/iptables_dynamicoffice02.log 2>&1
dip应用服务器win2k8配置
win2k8时间格式配置
注意：脚本用到了date命令，需要修改系统控制面板中的“区域和语言”–》“格式”，变更格式M为MM，H为HH，以保证输出的年月日的数字个数总是相同的。
例如：
win2k8防火墙firewall主脚本内容
注意：把IP替换为自已的IP，
脚本用到了curl.exe命令，需要把windows下可运行的curl.exe拷贝到脚本所在目录，
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 |
@echo off rem ################################################################## rem 更新日期 作者 更改内容 rem 2015年 denyb 创始 rem 2016/03 mail@zhaoyanan.cn 整改 rem 2017/03/24 mail@zhaoyanan.cn 调整默认策略，其它略有调整 rem 2018/11/22 mail@zhaoyanan.cn 增加动态策略，和firewall_dynamic.bat脚本配合使用；增加临时目录备份目录； rem ################################################################## :1 title firewall.bat 防火墙主脚本 cd %~dp0 if not exist tmp ( mkdir tmp ) if not exist bak ( mkdir bak ) for /f “delims=” %%i in (‘time /t’) do set timef=%%i set datetime=%date:~0,10%–%timef:~0,2%%timef:~3,2% netsh advfirewall export “bak\firewall_policy_%datetime%.bak” # 备份策略 netsh advfirewall set allprofiles state on # 防火墙状态，off为关闭，on为开启，注意，关闭可能导致全部网络中断 netsh advfirewall set allprofiles firewallpolicy allowinbound,allowoutbound # 这里临时设置默认防火墙策略全部允许，后面再调整默认配置 netsh advfirewall set global statefulftp enable # 开启FTP支持 rem 删除原策略 netsh advfirewall firewall delete rule name=all rem allow admin ip netsh advfirewall firewall add rule name=adminip dir=in remoteip=1.1.1.1 action=allow description=trustip # VPN and office rem 允许某些公共协议 netsh advfirewall firewall add rule name=allow_icmp dir=in protocol=icmpv4 action=allow description=allow_icmp_in netsh advfirewall firewall add rule name=allow_icmp dir=in protocol=icmpv6 action=allow description=allow_icmp_in rem 允许开放本机某些端口 netsh advfirewall firewall add rule name=allow_game_port dir=in remoteip=any protocol=tcp localport=10001 action=allow description=allow_gs_port # 游戏服务端口 netsh advfirewall firewall add rule name=allow_web_sever dir=in remoteip=2.2.2.2 action=allow description=trustip # web服主动连接gs服 rem 动态策略，该策略由firewall_dynamic.bat定时检查和变更，请不要修改name或者增加相同name的策略，以免动态策略失效 set location_name=office01 curl -s -S —connect–timeout 7 http://dip.zhaoyanan.cn:83/downloadip_%location_name%.txt > tmp\firewall_dynamic%location_name%_tmp2.txt for /f “tokens=1 delims= “ %%i in (tmp\firewall_dynamic%location_name%_tmp2.txt) do set dynamic_newip=%%i/32 netsh advfirewall firewall add rule name=dynamic%location_name% dir=in remoteip=%dynamic_newip% action=allow description=禁止复制或参考该条策略 set location_name=office02 curl -s -S —connect–timeout 7 http://dip.zhaoyanan.cn:83/downloadip_%location_name%.txt > tmp\firewall_dynamic%location_name%_tmp2.txt for /f “tokens=1 delims= “ %%i in (tmp\firewall_dynamic%location_name%_tmp2.txt) do set dynamic_newip=%%i/32 netsh advfirewall firewall add rule name=dynamic%location_name% dir=in remoteip=%dynamic_newip% action=allow description=禁止复制或参考该条策略 rem 全局策略 netsh advfirewall set allprofiles state on # 防火墙状态，off为关闭，on为开启，注意，关闭可能导致全部网络中断 netsh advfirewall set allprofiles firewallpolicy blockinbound,allowoutbound # 设置默认防火墙入站策略，拒绝不匹配允许的请求 rem 20170323发现360办公区连接登陆服异常，经分析判断，有logon服主动出站的包，所以出站不再做限制，日后可再抓包进一步分析 |
win2k8防火墙firewall动态策略脚本
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 |
@echo off rem ################################################ rem date author rem 2018/11/12 mail@zhaoyanan.cn 首次创建，结合dip方案，实现windows防火墙策略动态变更，从而在安全前提下方便网络权限的灵活分派 rem ################################################ :1 title firewall_dynamic.bat 动态防火墙策略脚本 setlocal set path=“C:\Program Files\WinRAR”;%Path% for /f “delims=” %%i in (‘time /t’) do set timef=%%i set datetime=%date:~0,10%–%timef:~0,2%%timef:~3,2% echo ###### do ######## echo %date% %time% start cd %~dp0 if not exist tmp ( mkdir tmp ) set location_name=office01 netsh advfirewall firewall show rule name=dynamic%location_name% | find “远程 IP:” > tmp\firewall_dynamic%location_name%_tmp.txt for /f “tokens=3 delims= “ %%i in (tmp\firewall_dynamic%location_name%_tmp.txt) do set dynamic_oldip=%%i curl -s -S —connect–timeout 7 http://dip.zhaoyanan.cn:83/downloadip_%location_name%.txt > tmp\firewall_dynamic%location_name%_tmp2.txt for /f “tokens=1 delims= “ %%i in (tmp\firewall_dynamic%location_name%_tmp2.txt) do set dynamic_newip=%%i/32 if not %dynamic_newip% == %dynamic_oldip% ( netsh advfirewall firewall set rule name=dynamic%location_name% new remoteip=%dynamic_newip% action=allow description=禁止复制或参考该条策略 ) else if %dynamic_newip% == %dynamic_oldip% ( echo “Nothing to do” ) else ( echo %date% %time% error goto exit ) set location_name=office02 netsh advfirewall firewall show rule name=dynamic%location_name% | find “远程 IP:” > tmp\firewall_dynamic%location_name%_tmp.txt for /f “tokens=3 delims= “ %%i in (tmp\firewall_dynamic%location_name%_tmp.txt) do set dynamic_oldip=%%i curl -s -S —connect–timeout 7 http://dip.zhaoyanan.cn:83/downloadip_%location_name%.txt > tmp\firewall_dynamic%location_name%_tmp2.txt for /f “tokens=1 delims= “ %%i in (tmp\firewall_dynamic%location_name%_tmp2.txt) do set dynamic_newip=%%i/32 if not %dynamic_newip% == %dynamic_oldip% ( netsh advfirewall firewall set rule name=dynamic%location_name% new remoteip=%dynamic_newip% action=allow description=禁止复制或参考该条策略 ) else if %dynamic_newip% == %dynamic_oldip% ( echo “Nothing to do” ) else ( echo %date% %time% error goto exit ) echo %date% %time% done echo ###### done ###### endlocal |
配置计划任务到win2k8系统中，每分钟跑一次firewall_dynamic.bat。
